Service

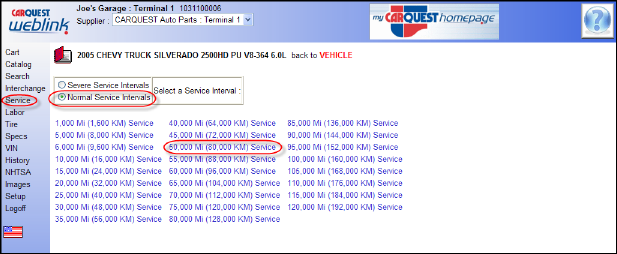

Select the appropriate vehicle as previously covered. Once selected a list of possible factory recommended services intervals are listed. Select the appropriate mileage/service-duty (normal or severe) choices to display factory-defined parts and labor items that need to be replaced and or performed.
Note that “Normal Service Intervals” and 50,000 mile Service has been selected.

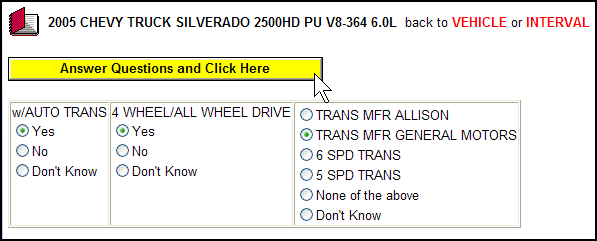

For this specific vehicle some “Specific Conditioning” questions must be answered prior to displaying the Interval parts and labor information. In this example, the service specified includes both labor item and parts.
…The associated 60,000-mile recommended Labor Services and Estimated Labor Times are displayed for the Selected Vehicle. In addition, if the Labor Rate is entered in the “Setup” features, the Labor times are extended to show the extended Labor Cost (Extend Column) for each recommended Service. To see the Parts associated with the recommended Services, click on the GREEN “Click Here for Catalog Lookup” button…

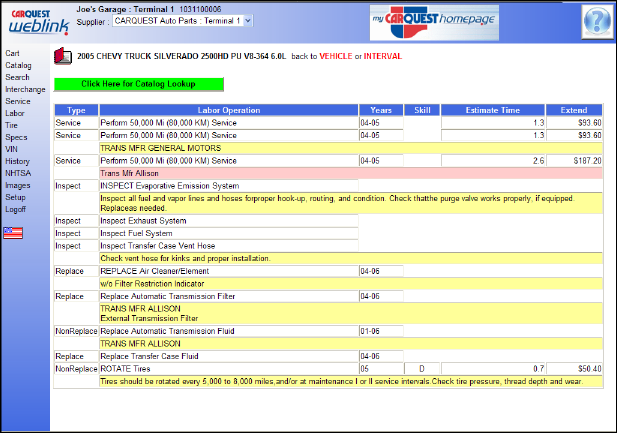

The associated 50,000-mile recommended Labor Services and Estimated Labor Times are displayed for the Selected Vehicle. In addition, if the Labor Rate is entered in the “Setup” features, the Labor times are extended to show the extended Labor Cost (Extend Column) for each recommended Service.
Note the large green button at the top labeled “Click Here for Catalog Lookup,” clicking will automatically look up and check price and availability for the associated parts included for this specific “Service Interval.” See next image for example.
As is customary throughout WEBLINK where parts and availability are displayed you may also select for addition to your active cart.
